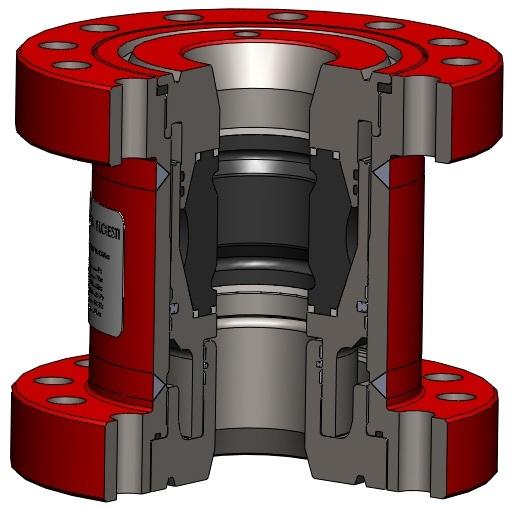

Stripper (figure 1) is an equipment that completes blowout prevention systems. It prevent the escape of oil or gas while running or pulling tubing under pressure.



stripper
Figure 1



It’s special rubber packer allows easy passage of tubing and tubing couplings without leakage. Stripper features a hydraulic actuator which allows the stripper rubber to be compressed quickly and safely without stopping operations. Stripper actuating pressure is 35÷70 bar.
Stripper can be operated using:
- CH6U-3000 psi control unit, or
- handpump.



SPECIFICATIONS

Stripper type SH 7 1/16 x 210 / 70 bar
Section Ø102 mm (4 in)
Static working pressure 70 bar (rest of the tubing)
Body testing pressure 140 bar
Stripping sealing pressure min. 35 bar (translational state of the tubing)
Flanged connections 7 1/16 x 210
Tubing size 2 3/8 – 2 7/8 in
Hole sizes for connection to hydraulic control system Rc 3/8 in
Piston closure race cca.32 mm
Total Oil volume for total piston stroke 2 litri
Actuation hidraulic
Overall dimensions : maximun diameter Ø 380 mm
                               height 300 mm
Weight 138,5  Kg







Stripper main parts are:

- body

- upper and lower caps

- packer

- piston

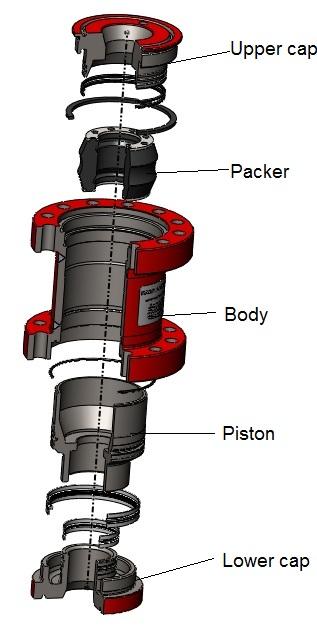

This main parts are shown in figure 2

fig2
Figure 2

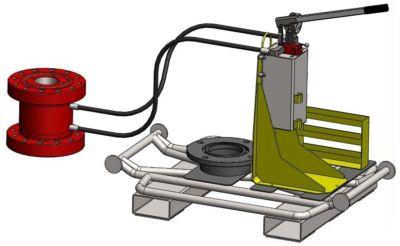

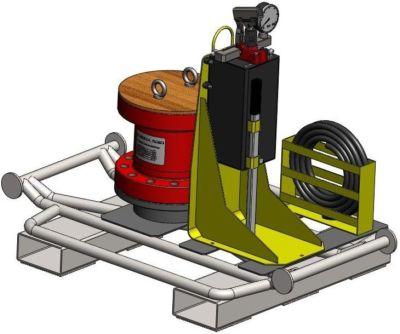

Handpump hydraulic actuating system (figure 3) consists of:

- PAM-TDS 45 handpump

- 10 liters tank

- hydraulic hoses (Dn 10 x 350 bar – 4 m )

fig3 1 fig3 2
