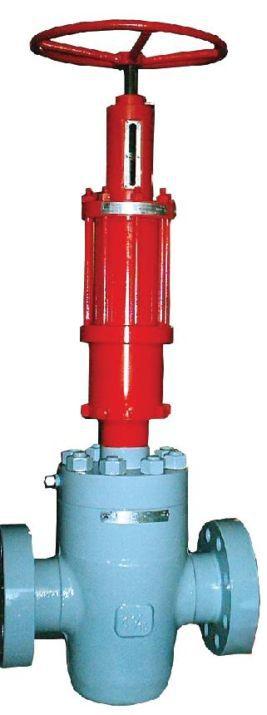

hydraulic actuated Slab gate valves

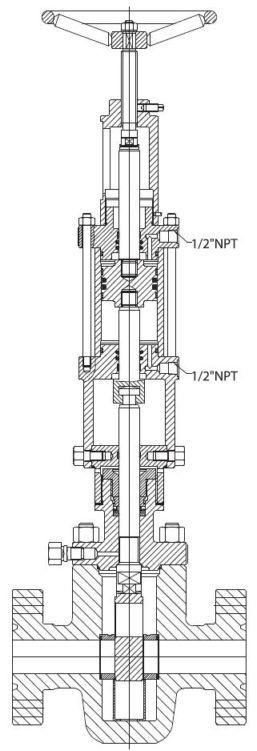

hydraulic actuated Slab gate valves 1

UZTEL hydraulic actuated valves HMB10 (with manual opening device) series are available

In different sizes and pressure classes. A manual opening device fitted directly on the bonnet Is standard available.

The bonnet assures both a metal-to-metal backseat seal and an independent sealing system. The sealing system is designed for pressure range and service of the valve and is interchangeable with other product brand in its size and pressure range.

Because the bonnet and the actuator are completely individual, self-contained sealing systems, a sour service bonnet may be used in conjunction with a standard service actuator, provided the control media is acceptable. The quick disconnect feature is an advantage targeted at saving the customer space and money.










Actuator

  • linear hydraulic double action
  • normal operating pressure 1,500psi
  • the cylinder wall withstands a non shock pressure of 3,000psi
  • double hydraulic seals and guides fitted to piston
  • position indicator

Valve

  • similar with standard design body & bonnet
  • rising stem with back-seat
  • slab gate reverse bore



Design, manufacturing API Spec. 6A
Size 1 13/16" , 7 1/16"
Working pressure 2 000 to 10 000 PSI
Temperature Range -60oC  to  +121 oC
| + -
