UZTEL Tubing heads are straight-bore, high capacity spools. Landing shoulder can safely support maximum loads. Standard: flanged studded side outlets with valve removal thread. Bottom is prepared to receive UZ-B secondary seal as standard. This spool has the following versions: UZTH standard for single completion (without aligning pins); UZTHD with one aligning pin for dual tubing completion with two-mandrel hangers within a master bushing;

UZTHDS with two aligning pins for dual tubing completion with split half hangers

All versions for dual tubing are designed for use also for single completion.

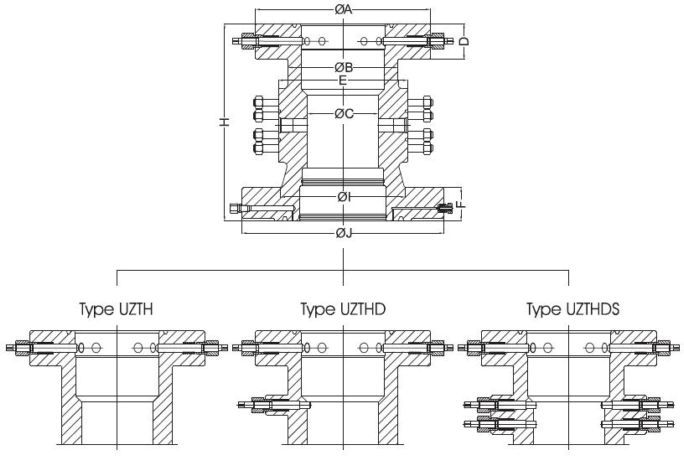

ths



Bottom Flange
Top Flange
Size     (in)

Press.

(PSI)

Size

(in)

Press. (PSI)

A

(in)

B

(in)

C

(in)

D

(in)

E

(in)

F

(in)

H

(in)

I

(in)

J

(in)

11 2,000 7 1/16 2,000 14.00 8.75 6.38 2.67 11.02 2.81 20.87 13.50 20.00
3,000 15.00 9.25 6.38 2.67 11.02 2.81 20.87 13.50 20.00
9 2,000 16.50 10.75 8.07 2.67 12.60 2.81 20.87 13.50 20.00
3,000 18.50 11.75 8.07 2.67 12.60 2.81 20.87 13.50 20.00
3,000 7 1/16 3,000 15.00 9.25 6.38 2.67 11.02 3.06 20.87 14.50 21.50
5,000 15.50 9.00 6.38 3.85 11.02 3.06 23.82 14.50 21.50
9 3,000 18.50 11.75 8.07 3.85 12.60 3.06 25.60 14.50 21.50
5,000 19.00 11.50 8.07 3.85 12.60 3.06 25.60 14.50 21.50
5,000 7 1/16 5,000 15.50 9.00 6.38 3.85 11.02 4.69 25.60 14.50 23.00
10,000 18.88 10.00 6.38 4.56 12.60 4.69 25.60 14.50 23.00
9 5,000 19.00 11.50 8.07 3.85 12.60 4.69 25.60 14.50 23.00
10,000 21.75 12.88 8.07 5.31 15.75 4.69 25.60 14.50 23.00
10,000 7 1/16 10,000 18.88 10.00 6.38 4.56 13.78 5.56 25.60 17.75 25.75
15,000 19.88 10.88 6.38 5.12 14.96 5.56 27.95 17.75 25.75
9 10,000 21.75 12.88 8.07 5.31 15.75 5.56 27.95 17.75 25.75
15,000 25.50 13.75 8.07 6.30 17.72 5.56 31.50 17.75 25.75
13 5/8 2,000 7 1/16 2,000 14.00 8.75 6.38 2.67 11.02 2.94 20.87 15.75 22.00
3,000 15.00 9.25 6.38 2.67 11.02 2.94 20.87 15.75 22.00
9 2,000 16.50 10.75 8.07 3.85 12.60 2.94 20.87 15.75 22.00
3,000 18.50 11.75 8.07 3.85 12.60 2.94 20.87 15.75 22.00
11 2,000 20.00 13.50 9.35 3.85 14.96 2.94 25.60 15.75 22.00
3,000 21.50 14.50 9.35 3.85 14.96 2.94 25.60 15.75 22.00
3,000 7 1/16 3,000 15.00 9.25 6.38 3.85 11.02 3.44 25.60 16.50 24.00
5,000 15.50 9.00 6.38 3.85 11.02 3.44 25.60 16.50 24.00
9 3,000 18.50 11.75 8.07 3.85 12.60 3.44 25.60 16.50 24.00
5,000 19.00 11.50 8.07 3.85 12.60 3.44 25.60 16.50 24.00
11 3,000 21.50 14.50 9.35 3.85 14.96 3.44 25.60 16.50 24.00
5,000 23.00 14.50 9.35 3.85 14.96 3.44 25.60 16.50 24.00
5,000 7 1/16 5,000 15.50 9.00 6.38 3.85 11.02 4.44 25.60 18.94 26.50
10,000 18.88 10.00 6.38 4.56 12.60 4.44 27.95 18.94 26.50
9 5,000 19.00 11.50 8.07 3.85 12.60 4.44 27.95 18.94 26.50
10,000 21.75 12.88 8.07 5.31 15.75 4.44 27.95 18.94 26.50
11 5,000 23.00 14.50 9.35 5.12 14.96 4.44 27.95 18.94 26.50
10,000 25.75 15.75 9.35 6.10 18.90 4.44 27.95 18.94 26.50
10,000 7 1/16 10,000 18.88 10.00 6.38 4.56 13.78 6.62 27.95 21.75 30.25
15,000 19.88 10.88 6.38 5.12 14.96 6.62 27.95 21.75 30.25
9 10,000 21.75 12.88 8.07 5.31 15.75 6.62 27.95 21.75 30.25
15,000 25.50 13.75 8.07 6.30 17.72 6.62 31.50 21.75 30.25
11 10,000 25.75 15.75 9.35 6.10 18.90 6.62 31.50 21.75 30.25
15,000 32.00 16.81 9.35 7.87 23.62 6.62 33.46 21.75 30.25
