  • BOP Hydraulic Control Systems

    The accumulator unit module produce, store and deliver hydraulic energy under the form of fluid under controlled pressure to the connection pipes/hoses sledge assembly.

    The accumulator unit module is mounted at approximate 80-100 feet from the well bore, outside the explosion hazard zone. Accumulators are pressure vessels used to store hydraulic energy by compressing a blanked of nitrogen over an oil filled area. The accumulators are cylindrical type, with a stainless steel float that partially separates the oil from the nitrogen which assure a long live compare with membrane or piston with rubber gasket versions.

    The reservoir has a rectangular shape, contain baffle, fill and drain ports and stores the hydraulic fluid at the atmospheric pressure.

    Highly sensitive hydro-pneumatic or electrical, self-relieving regulators efficiently control hydraulic pressure while drill pipe and tool joints on being stripped. The accumulator unit module has warning lamps and alarm, to indicate low accumulator pressure, low air pressure, low hydraulic fluid level.

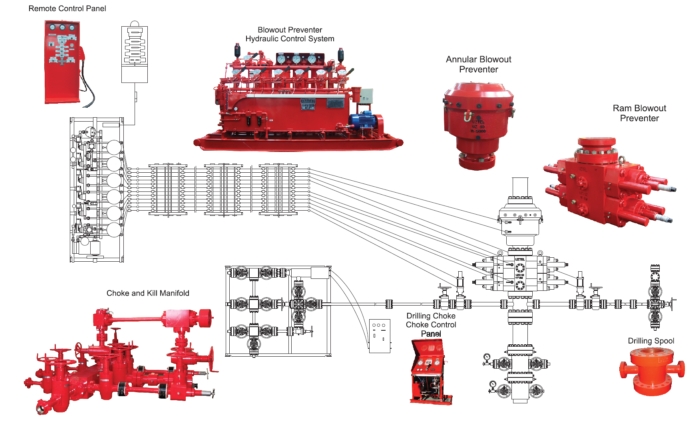

    bop preventer hydraulic control systems

    Accumulator unit module is connected to the preventers by a system of pipes and fire tested hoses (standard-flexible hoses 20 feet long at each end combine with steel pipes install on racks, total length minim 100 feet).On request other configurations available. Connection between accumulator unit module and driller remote control panel is made in the pneumatic version with a multiple pneumatic remote control lines encased in polyurethane sheeting and fitted with quick change junction's bots for easy attachment. Electrical version use a multiple wire cable with ends quick connectors.

    The air or electrical remote control panel has a memory system which indicates the last position of stack function.

    Air or electrical remote control panels provide control and pressure monitoring of the BOP Control System. Air or electrical remote control panels can be provided in a wide variety of size, styles and configurations to meet specific space and operational criteria. All air or electrical remote control panels contain a master control valve or a master button which must be operated simultaneously with the selected function to initiate the operation.

    UZTEL is able to offer a wide range of equipments which satisfys the technical and economical requirements of each client.

    bop preventer hydraulic control systems-1

    Item  Features    MODEL
    MD 03/MD03E MD 05/MD05E MD 08/MD08E MD 10/MD10E MD 16/MD16E MD WO4
    1 Maxim working pressure 210bar (3000 psi)
    2 Pumps main electrically driven
    secondary pneumatically operated
    3

    Hydropneumaticaccumulator

    modul volume

    4x80=320 litres

    4x21.13=84.5gal

    6x80=480 litres

    6x21.13=128.8gal

    8x80=640 litres

    8x21.13=169gal

    10x80=800 litres

    10x21.13=211.3gal

    16x80=1280 litres

    16x21.13=338.1gal

    4x80=320 litres

    4x21.13=84.5gal

    4

    Fluid volume used for

    70 to 210 bar/1000 to 3000 psi

    4x40=160 litres

    4x10.57=42.3gal

    6x40=240 litres

    6x10.57=63.4gal

    8x40=320 litres

    8x10.57=84.6gal

    10x40=400 litres

    10x10.57=105.7gal

    16x40=640 litres

    16x10.57=169.1gal

    4x40=160 litres

    4x10.57=42.3gal

    5 Safety relief valve 1/2in x 220 bar (3140 psi)
    6 Tank volume

    650 litres

    171.7 gal

    1000 litres

    264.2 gal

    1000 litres

    264.2 gal

    1000 litres

    264.2 gal

    1400 litres

    370.0 gal

    650 litres

    171.7 gal
    Pump flow main 17.4 litres/min at 1000 rot/min 28 litres/min at 1000 rot/min 28 litres/min at 1000 rot/min 40 litres/min at 1000 rot/min 40 litres/min at 1000 rot/min 17.4 litres/min at 1000 rot/min
    secondary variable
    8   Electromotive power for triplex pump actuating

    11 kw

    1450 rot/min

    18.5 kw

    1450 rot/min

    18.5 kw

    1450 rot/min

    22 kw

    1000 rot/min

    22 kw

    1000 rot/min

    11 kw

    1450 rot/min
     9   Trapezoidal belt type  B 17x11- 1626  B 17x11- 1850  B 17x11- 1850  SPA 12.5x10-1765  SPA 12.5x10-1765  B 17x11- 1626
     10

      Mains frequency /

      supply voltage

     50Hz /380V

    60Hz / 460V

     50Hz /380V

    60Hz / 460V

     50Hz /380V

    60Hz / 460V

     50Hz /380V

    60Hz / 460V

     50Hz /380V

    60Hz / 460V

     50Hz /380V

    60Hz / 460V

     11   Auxiliary hydro-pneumatic pumps number 1  2  2  2 3 1
     12 Hydro-pneumatic pumps ratio (hydraulic/pneumatic pressure ratio)  60:1
    13 Standard number of station fluid control  6
    14 Size of houses / pipes  1 in
    15 Actuating distribuitors type     4 way x 3 positions, 1 in x 210 bar/3000 psi (selector)
     16

    Overal dimensions (mm/in)

    Lenght (A):

    Width (B):

    Height (H):



    4020/158.27

    1140/44.88

    2060/81.10



    4225/166.34

      1540/60.63

    2060/81.10



    4345/171.06

       1540/60.63

    2060/81.10



    4785/188.38

       1540/60.63

    2060/81.10



    5560/218.9

       1800/70.9

    2060/81.10



    3475/136.82

       1200/47.25

    2060/81.10

    17 Net weight (kg / lbs) 3500/7716 4500/9921 5950/13117 6250/13779 8650/19070 3000/6614
    Note: All dates are just for information only. Please contact UZTEL for more informations
