• Technical features:
  • non rising stem;
  • bi-directional flow;
  • body and bonnet connected by studs and nuts;
  • body and bonnet sealing: soft metallic crush ring;
  • seats: fully floated;
  • one piece gate;
  • backseat available.

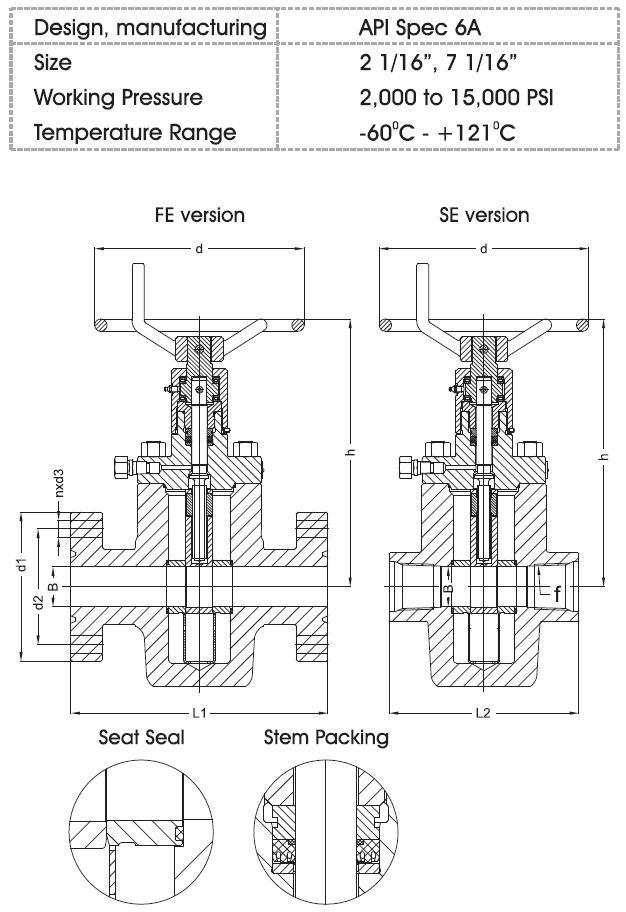

  • end to end conection: 6B or 6BX flange type acc. to API 6A (with Ring Joint), or API threaded

 slabgatevalves

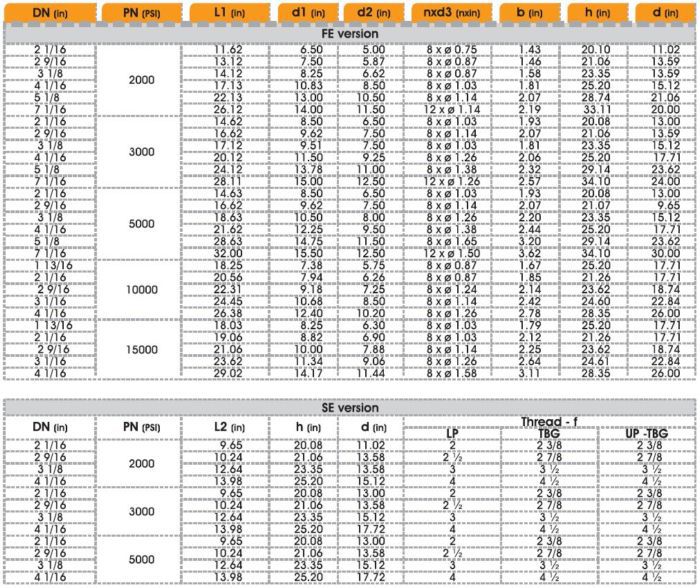

slabgatevalves-table



Description and operation:

The seats are fully floating, combined with a solid slab gate to give a true downstream seal resulting in low operating forces. Being fully symmetrical it will effectively seal pressure without risk of blockage. Metal to metal seal between gate and seats. Special gasket on back groove of seats. Full metal-to-metal seats are available on request (metallic backseat gasket). Gate and seat replacement is possible, with the valve in line, without the need for special tools.

Upper and lower thrust bearings isolated from well fluid, minimizing torque. Stem packing is a special gasket with internal spring.

The valve body may be grease filled through suitable fittings provided on body.

To close valve rotate the hand-wheel clockwise, gate moves downward, strikes the body; then rotate the hand-wheel clockwise half turn to permit a free moving of gate pressure. To open valve, rotate the hand-wheel counter-clockwise until strikes the bonnet. Floating seats assure valve seal in either open or closed position.
