UZ-29 Casing Spools

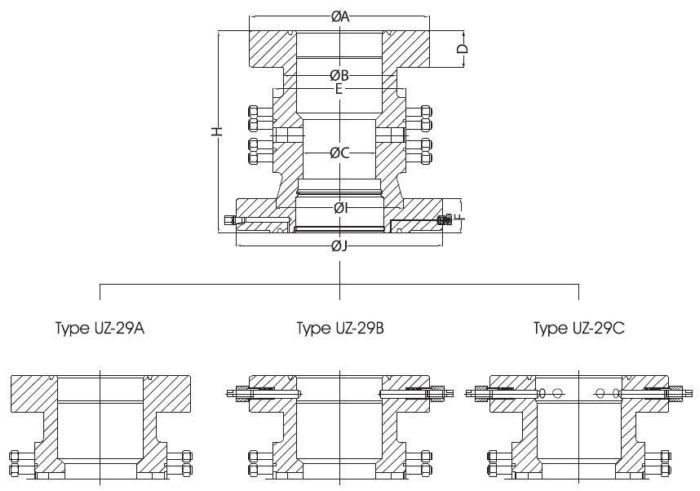

Type UZ-29A Casing spool has a versatile straight design that can accept a wide variety of slip and mandrel casing hangers (standard UZ-29 casing hanger).

Type UZ-29B Casing spool bowl is identical to the UZ-29A with the addition of 2 lock down screws for wear bushing retention.

Standard: flanged studded side outlets with valve removal thread.

Bottom is prepared to receive UZ-B secondary seal as standard.

On request, the casing spool can be prepared to receive UZ-IS secondary seal or other type of seal.







uz29-cs





Bottom Flange
 Top Flange
Size (in)

Press.

(PSI)

Size

(in)

 Press. (PSI)

A

(in)

B

(in)

C

(in)

D

(in)

E

(in)

F

(in)

H

(in)

I

(in)

J

(in)
11 2,000 11 2,000 20.00 13.50 9.35 2.81 15.74 2.81 23.22 13.50 20.00
3,000 21.50 14.50 9.35 3.06 16.92 2.81 23.22 13.50 20.00
3,000 11 3,000 21.50 14.50 9.35 3.06 16.92 3.06 23.22 14.50 21.50
5,000 23.00 14.48 9.35 4.69 16.92 3.06 25.98 14.50 21.50
5,000 11 5,000 23.00 14.48 9.35 4.69 16.92 4.69 25.98 14.50 23.00
10,000 25.75 15.75 9.35 5.56 20.07 4.69 29.33 14.50 23.00
13 5/8 2,000 11 2,000 20.00 13.50 9.35 2.81 15.74 2.95 23.22 15.75 22.00
3,000 21.50 14.50 9.35 3.06 16.92 2.94 23.22 15.75 22.00
13 5/8 2,000 22.00 15.74 12.59 2.94 18.11 2.94 23.22 15.75 22.00
3,000 24.00 16.51 12.59 3.44 18.89 2.94 23.22 15.75 22.00
3,000 11 3,000 21.50 14.50 9.35 3.06 16.92 3.44 25.98 16.50 24.00
5,000 23.00 14.48 9.35 4.69 16.92 3.44 25.98 16.50 24.00
13 5/8 3,000 24.00 16.51 12.59 3.44 18.89 3.44 26.77 16.50 24.00
5,000 26.50 18.93 12.59 4.44 21.25 3.44 26.77 16.50 24.00
5,000 11 5,000 23.00 14.48 9.35 4.69 16.92 4.44 25.98 18.94 26.50
10,000 25.75 15.75 9.35 5.56 20.07 4.44 25.98 18.94 26.50
13 5/8 5,000 26.50 18.93 12.59 4.44 21.25 4.44 26.96 18.94 26.50
10,000 30.25 19.50 12.59 6.62 24.01 4.44 26.96 18.94 26.50
10,000 11 10,000 25.75 15.75 9.35 5.56 20.07 6.63 26.96 21.75 30.25
13 5/8 10,000 30.25 19.50 12.59 6.62 24.01 6.63 29.33 21.75 30.25
16 3/4 2,000 11 2,000 20.00 13.50 9.35 2.81 15.74 3.31 23.22 19.50 27.00
3,000 21.50 14.50 9.35 3.06 16.92 3.31 23.22 19.50 27.00
13 5/8 2,000 22.00 15.74 12.59 2.94 18.11 3.31 23.22 19.50 27.00
3,000 24.00 16.51 12.59 3.44 18.89 3.31 23.22 19.50 27.00
3,000 11 3,000 21.50 14.50 9.35 3.06 16.92 3.94 23.22 20.00 27.75
5,000 23.00 14.48 9.35 4.69 16.92 3.94 25.98 20.00 27.75
13 5/8 3,000 24.00 16.51 12.59 3.44 18.89 3.94 25.98 20.00 27.75
5,000 26.50 18.93 12.59 4.44 21.25 3.94 25.98 20.00 27.75
5,000 11 5,000 23.00 14.48 9.35 4.69 16.92 5.13 29.33 21.88 30.38
10,000 25.75 15.75 9.35 5.56 20.07 5.13 29.33 21.88 30.38
13 5/8 5,000 26.50 18.93 12.59 4.44 21.25 5.13 29.33 21.88 30.38
10,000 30.25 19.50 12.59 6.62 24.01 5.13 29.33 21.88 30.38
10,000 11 10,000 25.75 15.75 9.35 5.56 20.07 6.63 30.70 25.81 34.31
13 5/8 10,000 30.25 19.50 12.59 6.62 24.01 6.63 30.70 25.81 34.31
21 1/4 2,000 13 5/8 2,000 22.00 15.74 12.59 2.94 18.11 3.88 25.98 24.00 32.00
3,000 24.00 16.51 12.59 3.44 18.89 3.88 25.98 24.00 32.00
16 3/4 2,000 27.00 19.48 15.43 3.31 21.65 3.88 25.98 24.00 32.00
3,000 27.75 20.00 15.43 3.94 21.65 3.88 25.98 24.00 32.00
20 3/4 3,000 13 5/8 3,000 24.00 16.51 12.59 3.44 18.89 4.75 25.98 24.50 33.75
5,000 26.50 18.93 12.59 4.44 21.25 4.75 26.96 24.50 33.75
16 3/4 3,000 27.75 20.00 15.43 3.94 21.65 4.75 26.96 24.50 33.75
5,000 30.38 21.88 15.43 5.13 24.01 4.75 26.96 24.50 33.75
20 3/4 3,000 33.75 24.50 19.13 4.75 26.37 4.75 26.96 24.50 33.75
21 1/4 5,000 39.00 29.88 19.13 7.12 31.49 4.75 29.33 24.50 33.75
21 1/4 5,000 13 5/8 5,000 26.50 18.93 12.59 4.44 21.25 7.12 26.96 29.88 39.00
10,000 30.25 19.50 12.59 6.62 24.01 7.12 29.33 29.88 39.00
16 3/4 5,000 30.38 21.88 15.43 5.13 24.01 7.12 30.70 29.88 39.00
10,000 34.31 23.69 15.43 6.62 27.55 7.12 30.70 29.88 39.00
